Rain Days at Manilla: I.

Rain per rain day graph

The annual pattern of rain day rainfall

In Manilla, the mean pattern of rainfall on rain days through the months of the year is simple and regular. This pattern can be worked out from the 125-year rainfall record of Manilla Post Office, Station 055031, beginning in 1883.
The graph above shows that, on the average, on a day when rain falls in January, the total in the day is about thirteen millimetres. When rain falls in July, the total in a day is about half of that: that is, six and a half millimetres. The pattern through the year is close to a perfect harmonic cycle, with a maximum in the third week of January, (four weeks after the longest day) and a minimum exactly six months later, in the third week of July. Only two of the monthly readings do not match the pattern well: January has about one millimetre more than would fit the curve, and December about half a millimetre less.
Of course, most people in the district realise that heavier rain falls in summer, but few would know any details. I do not think that the Bureau of Meteorology has ever worked through these figures. [See note below about the use of “rain days” in the Bureau.]
This very simple pattern of mean rainfall per rain day is the more remarkable because it comes from two other patterns that are not so simple.

MeanRainEachMonthThe second graph is the pattern of monthly rainfall totals through the year. Manilla has two peaks of rainfall volume in the year. The major peak comes in the last days of December, a few days after the longest day, and a minor peak just six months later, at the end of June. Winter is marked, not by a minimum of rainfall, but by a secondary maximum. Much more detail is given in the post “A seasonal rainfall model for Manilla”
and in the post “Manilla 30-year Monthly Rainfall Anomalies”.

The final graph shows simply how many days of rain there are in each calendar month, on the average. This pattern is quite strange. Most months of the year have about six rain days. April has fewer: Continue reading

More Droughts After Heavier Rains III.

Graphical log of errors when droughts are predicted from rains

Droughts and flooding rains at Manilla NSW were related in a way that is remarkable and unexpected.

Part III. Predicting drought from heavy rain

[Back to Part II: Scatter-plots]

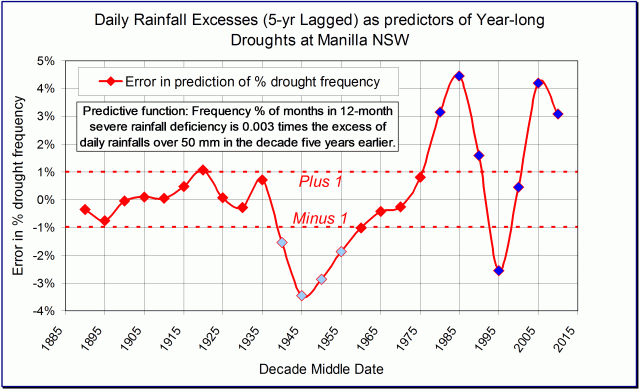

The graph above is derived from the first graph in this series (copied here) by using the blue regression trend-line from the scatter plot of selected data (also copied here). (For data details, sLog of 1-year droughts and 5-year lagged heavy rainfallsee Note 1, below.)

The equation of the trend line, y = 0.030x is used AS IF to use the daily rainfall excesses to predict the drought frequency five years later. The graph shows the “error” of this “prediction”. (In Note 2, below, I concede that this data set could not support such prediction.)
As expected from the previous graphs, the “prediction” is accurate at most data points to 1975. It is correct to the nearest percentage whole number at nine of the eighteen points. From 1940 to 1955, droughts are uniformly more frequent than predicted. After 1975, the error curve swings wildly up and down.

Could droughts have been predicted from heavy rainfalls?

Scatter-plot 1890 to 1975

By about 1915, it is conceivable that this relationship could have been discovered, either by analysis of such data, or by modelling of the climate system. Then, the data for the next 20 years, up to 1935, would seem to confirm it. Data from 1940 to 1955 would cause doubts, but data from 1960 to 1975 would restore confidence. Then the utter failure of the model in the following four decades would have led to its abandonment, at least for the time being.

Climate shifts of 1975

Continue reading

More Droughts After Heavier Rains II.

Scatter-plot 1890 to 1975

Droughts and flooding rains at Manilla NSW were related in a way that is remarkable and unexpected.

Part II. Scatter-plots

[Back to Part I: Graphical logs]

I have made scatter plots to see how much correlation there is between the two data sets: the frequency % of severe 12-month drought and the total decadal daily rainfall excesses over 50 mm, when lagged five years. (For data details, see Note 1, below.)

A. The first 70% of the data

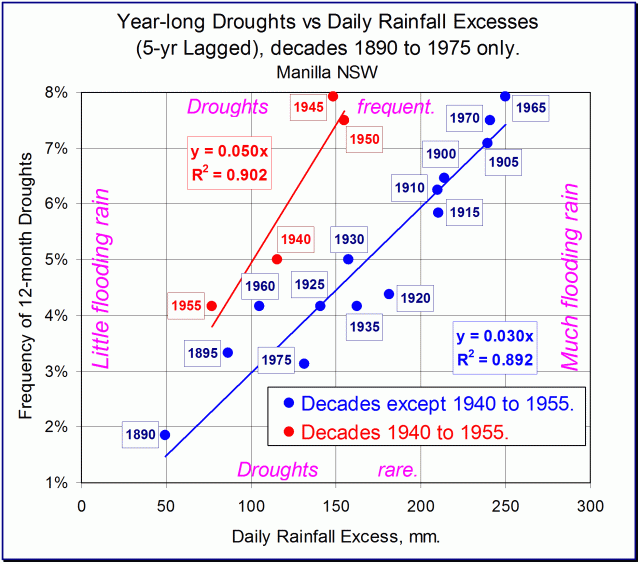

The first scatter-plot includes only the first 70% of the data, from 1890 to 1975, which showed matching patterns on the graphical log copied below. I have broken the data points into two groups: the aberrant group 1940 to 1955 (red) and the fourteen best-matched points (blue). The trend line that best fits those fourteen points is y = 0.028x + 0.407, with R-squared = 0.898. However, I have been able to fit the trend line y = 0.030x, that shows y proportional to x, without making R-squared worse than 0.892.
Similarly, the four decades centred on 1940, 1945, 1950 and 1955, had y = 0.050x, with R-squared equal to 0.902.

Expressed in words: for fourteen of the first eighteen data points, the frequency % of severe 12-month droughts remained close to 0.03 times the decade total of daily rainfall (>50 mm/day) measured five years earlier. For the other group of four adjacent points, the number was not 0.03, but 0.05.

B. All the data

Scatter-plot 1890 to 2010

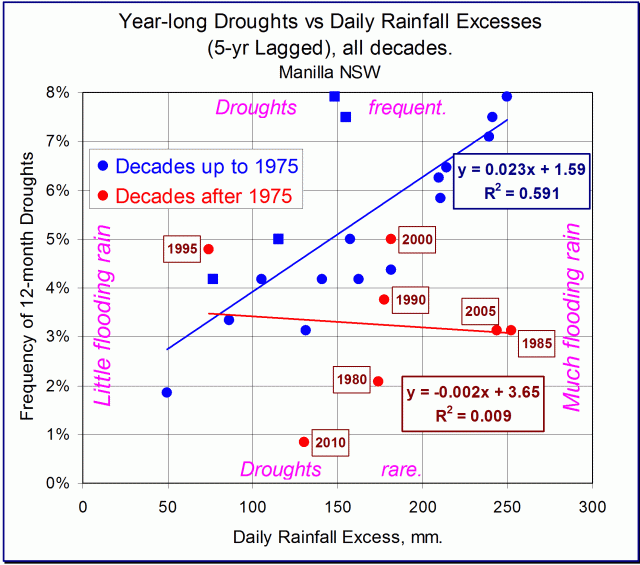

The second scatter plot shows data for all 25 (five-year overlapped) decades. There is a “shot-gun” pattern, as expected. Continue reading

More Droughts After Heavier Rains I.

Log of 1-year droughts and 5-year lagged heavy rainfalls

Droughts and flooding rains at Manilla NSW were related in a way that is remarkable and unexpected.

Part 1. Graphical logs

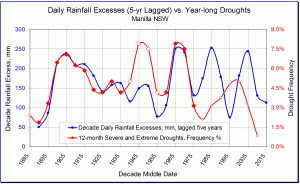

As the first graph shows, for most of the 130-year record year-long droughts came in direct proportion to very heavy daily rainfall five years earlier. (For data details, see Note 1, below.)
The match between these two variables is astonishing. Both are based on rainfall readings, but they are scarcely related. Excessive daily rainfalls are transient extreme weather events; 12-month droughts are an aspect of climate.

Mackellar’s “Droughts and flooding rains”

Dorothea Mackellar’s famous line * is more apt for this graph than for other graphs where I use “flooding rains” to mean periods unlike drought. (See Note 2. below.) The rains and droughts that I plot here both bring hardship. Severe droughts lasting one year are among the worst of droughts: long enough to use up reserves, and not so long as to be eased by periods of rain. The daily rainfall events plotted are the ones that cause damaging floods.

Features of the graphical log

Log of 1-year droughts and heavy rainfalls

This second graph shows the data at the actual dates. Although the data points for the decade excess of heavy daily rainfall and those for frequency % of 12-month droughts have a matching pattern for much of the record, the pattern is offset. Heavy rainfall points come five years earlier than corresponding drought points. Notice that the heavy rainfalls do not (except in 1980) come squarely in gaps between droughts.
Lagging the rainfall points by five years (as in the first graph) makes some matches almost exact. Such matches occur at all data points from 1890 to 1975, except those from 1940 to 1955, where drought frequencies are relatively higher. Both variables show a two-decade-long, slow decline from 1905 to 1925. At the chosen scales, the amplitude of corresponding rises and falls are usually similar as well.
After 1975, daily rainfall oscillates through a wide amplitude with a twenty-year period, while the frequency % of drought varies Continue reading

Very Wet Days at Manilla: Decade Excesses

Log of decade totals of rainfall excess, Manilla, NSW Last month I posted a complete log of days at Manilla that had more than 50 mm of rainfall.
I call days that have more than 50 mm of rainfall “very wet days”. At Manilla, on the average, these have come only once per year. Days with more than 50 mm of rainfall have no special meaning, but they can be taken as a rough indication that local flooding, or even general flooding, is likely: the “Flooding Rains” of Dorothea Mackellar.*
The graph I posted did not show whether these very wet days, likely to cause floods, had a bigger effect at some times than at others. This graph shows that.

Since it is only the excess rainfall that runs off, leading to flooding, I have subtracted 50 mm from each “very wet day” rainfall amount. Then I have summed all such excesses for each half-decade. I summed the half-decades in pairs to give a decade sum (in mm) centered on the years 1885, 1890, 1895, etc. For example, the decade centered on 1925 had a total of daily rainfall excesses of 157 mm. (Values for 1880-84 were estimated from those for 1883 and 1884.)
Some decades had very high values of excess rainfall: there was about 250 mm in the decades centered on 1900, 1960, 1965, 1980, and 2000. There were very low values, below 100 mm, in the decades centered on 1885, 1890, 1950, and 1990. There appears to be no trend.

Note added June 2015.

The close similarity of two graphs, the one of heavy rainfalls in this post, and the one of year-long droughts in an earlier post led me to write a further series of three posts:
More droughts After Heavier Rains I.
More droughts After Heavier Rains II.
More droughts After Heavier Rains III.

* By arrangement with the Licensor, The Dorothea Mackellar Estate, c/- Curtis Brown (Aust) Pty Ltd.
