21-C Rain ENSO IPO: Scatterplot

The anomaly of monthly rainfall at Manilla, NSW varied with that of ENSO for only a part of the 21st century to date.

Scatterplot Rainfall vs ENSO

This connected scatterplot relates the smoothed anomaly of the El Niño-Southern Oscillation (ENSO) to the smoothed and 2-month-lagged anomaly of monthly rainfall at Manilla, NSW. The earlier data, from September 1999 to September 2011, is plotted in blue, and the later data, from October 2011 to November 2018, in red.

The same data was displayed as a dual-axis line plot in an earlier post titled “21-C Rain-ENSO-IPO: Line graphs”. Data sources are linked there.

The line plot revealed two things: the relationship changed from earlier to later times, and there was a better match when the rainfall data was lagged by two months. To clarify, I prepared various scatterplots with fitted regressions.

Raw data scatterplots

Scatterplots of the raw data values yielded regressions with very low values of the coefficient of determination (R-squared). For the whole population, R-squared was 0.028. I then checked the coefficient when I lagged the rainfall by 1-, 2-, or 3-months. A 1-month lag almost doubled the coefficient to 0.041; a 2-month lag gave 0.055, and a 3-month lag gave 0.041 again.
My observation that Manilla rainfall typically leads ENSO by 2 months is confirmed.

Connected scatterplots of smoothed and lagged data

The smoothing function used in the dual-axis line plot of the earlier post makes a good visual match. That suggests that local rainfall and ENSO are physically related at a periodicity no shorter than 12 months.
Using the smoothed and 2-month-lagged data, I have made the scatterplots shown in the graph above.
The better-matched data from September 1999 to September 2011 (blue) has a satisfactory R-squared of 0.498, nearly 20 times greater than that of the raw data. The very poorly-matched data from October 2011 to November 2018 (red) has an R-squared value of 0.040, no better than the raw data.

Patterns in the sequence of rainfall and ENSO values

In the above graph, I have joined the consecutive smoothed data points to make a connected scatterplot. Because little noise remains, clear patterns appear.

Matched rainfall and ENSO

The pattern up to September 2011 (blue) is mainly a series of ellipses, some clockwise and some anti-clockwise. They are almost parallel to the regression line:

y = -0.047x-0.246

The blue point furthest to the top left is that for September 2002, a time of extreme drought and El Niño.
The blue point furthest to the bottom right is that for December 2010, a time of very high rainfall and La Niña.

Discordant rainfall and ENSO

The pattern from October 2011 (red) swings about wildly and does not repeat. The regression (with a trivial coefficient of determination) is nearly horizontal. Near its ends are the extreme drought of June 2018 and the deluge of January 2012, both at times when ENSO was near neutral. At the top of the graph is the Super El Niño of November 2015, when Manilla rainfall was normal.

Conclusion

Scatterplots, connected scatterplots and regressions confirm that a strong relation between rainfall at Manilla and ENSO failed in 2011 as the IPO was rising from a negative toward a positive regimen.

21-C Rain-ENSO-IPO: Line graphs

From 1999, rainfall at Manilla NSW matched ENSO only up to 2011, before the IPO became positive.

Manilla rain, ENSO, IPO

This graphical log compares the rainfall at Manilla NSW with the El Niño-Southern Oscillation (ENSO) and the Inter-decadal Pacific Oscillation (IPO) through the 21st century to date. Values shown are anomalies, smoothed. (See Notes below on “Data”, “Smoothing”, and “Lagged Rainfall”.)

Rainfall (black) uses the left axis scale; the ENSO (magenta) and the IPO (green) use the inverted right axis scale.

Matches between rainfall and ENSO

There is an excellent match between the rainfall and ENSO values in the left part of the graph.
I improved the visual match by various means:
1. The ENSO scale (magenta) is inverted, because positive values of the ENSO anomaly relate to negative values of rainfall anomaly here.
2. The scales are harmonised: the zero values are aligned, and 20 mm of monthly rainfall anomaly is scaled to (minus) one degree of ENSO anomaly.
3. Smoothing is applied to suppress cycles shorter than 12 months.
4. Rainfall anomaly values are lagged by two months. (See the Note below.)
As lagged, most peaks and troughs of rainfall coincide with troughs and peaks of ENSO, and their sizes (as scaled) are often similar.

Failure to match rainfall and ENSO

In the right part of the graph, the match between rainfall and ENSO fails. There are extreme mismatches: the Super-El Niño of 2014-16 had no effect on local rainfall, the rainfall deluge of 2011-12 came with a mild and declining La Niña, and the extreme drought of 2018 came while ENSO was neutral.
By visual inspection, I judge that a close relation of rainfall to ENSO, which had applied for the twelve years up to September 2011, then failed for the following seven years.

Influence of the IPO

The inter-decadal Pacific Oscillation (IPO) affects the relation between ENSO and Australian weather. (See note below “Effect of the IPO”.)

Power et al.(1999) show that Australian seasonal weather and its prediction align with ENSO only when the IPO is negative. It follows that a good match between ENSO and Manilla rainfall was expected while the IPO (green) was negative from 1999 to 2013, and was not expected from 2014 to 2017. The trend of the IPO through 2016-17 makes it likely that the IPO continued positive through 2018, as the mismatch between rainfall and ENSO persisted.
Power et al. note that the relation is not sensitive to the width of a neutral zone chosen to separate the positive and negative regimens of the IPO. In this particular case, the rainfall/ENSO match failed as the IPO rose through minus one degrees. However, the rainfall/ENSO match began in 1999, much earlier than the time when the IPO fell through minus one degrees.

Scatter plots

In a following post I show scatter plots and regressions for the periods of match and mismatch on this graphical log.


NOTES

Data

Rainfall

Continue reading

Hot Days and ENSO

Graphical log of max temps and hot days

More frequent hot days do not come in a three year cycle, but in a 1.5 year cycle related to ENSO.

The Hot Day data set

The graph of number of hot days per year

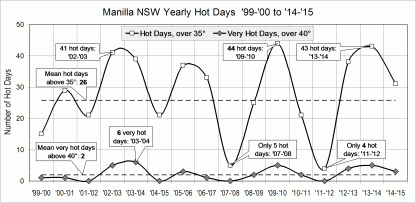

Log of annual hot days in 16 yearsThe graph on the left is one I posted earlier. The height of each data point represents the number of hot days in a year, plotted near January. The pattern of points led me to join them by a smooth curve. This curve swings up and down rather regularly, with five peaks and five dips in the fifteen years. That is, more frequent hot days seem to come in a three-year cycle.
