3-year trends to September 2016

Parametric plots of smoothed climate variables at Manilla
“September 2016 extreme cold and rain”

Trends to September 2016

September raw anomaly data (orange)

September 2016 was extremely wet and had extremely cold days. Axes on the graph had to be extended to anomaly values of minus 80 mm for rainfall and minus four degrees for daily maximum temperature. In sympathy, cloudiness and dew point were extremely high and daily temperature range was extremely low.
On the first graph, partially-smoothed rainfall and temperature values had moved consistently in the same direction since March.

 Fully smoothed data (red)

The latest fully-smoothed data point is March 2016.
Rainfall, temperature range anomaly and daily maximum temperature had been static for three months. The latter had been rather high, the others normal. Cloudiness, dew point and temperature range had begun to move down the graph, while daily minimum temperature and subsoil temperature had begun to move up.


Note:

Fully smoothed data – Gaussian smoothing with half-width 6 months – are plotted in red, partly smoothed data uncoloured, and raw data for the last data point in orange. January data points are marked by squares.
Blue diamonds and the dashed blue rectangle show the extreme values in the fully smoothed data record since September 1999.

Normal values are based on averages for the decade from March 1999.* They appear on these graphs as a turquoise (turquoise) circle at the origin (0,0). A range of anomalies called “normal” is shown by a dashed rectangle in aqua (aqua). For values in degrees, the assigned normal range is +/-0.7°; for cloudiness, +/-7%; for monthly rainfall, +/-14 mm.

 * Normal values for rainfall are based on averages for the 125 years beginning 1883.

3-year trends to June 2016

Parametric plots of smoothed climate variables at Manilla
“June 2016 extreme rain”

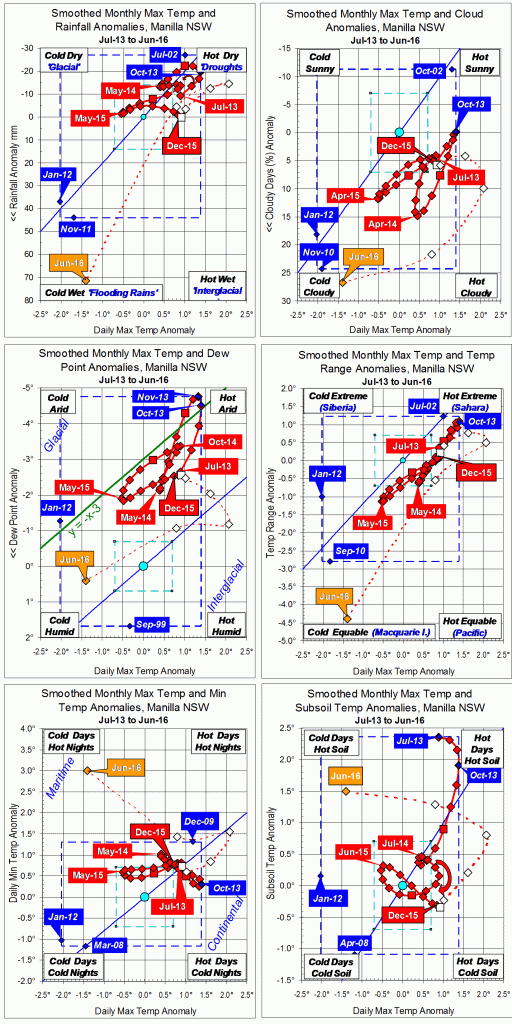

Trends to June 2016.

June raw anomaly data (orange)

In June 2016, raw anomalies for all moisture variables became very high, while daily maximum temperature became very cool. Rainfall was more than 70 mm higher than normal (40 mm), and daily temperature range more than 4 degrees narrower than normal (15 degrees). Skies were cloudy and the dew point high. The two other temperature variables did not conform. Daily minimum temperature anomaly was very high, making the climate more coastal. Subsoil temperature anomaly was also high: the curve shows it trailing daily maximum temperature anomaly, after leading it for years.

 Fully smoothed data (red)

Fully-smoothed data are now available up to December 2015. In general, it was a time of normal climate. Anomalies were small and changing only slowly. Daily maximum temperature was rather high, and dew point rather low.


Note:

Fully smoothed data – Gaussian smoothing with half-width 6 months – are plotted in red, partly smoothed data uncoloured, and raw data for the last data point in orange. January data points are marked by squares.
Blue diamonds and the dashed blue rectangle show the extreme values in the fully smoothed data record since September 1999.

Normal values are based on averages for the decade from March 1999.* They appear on these graphs as a turquoise (turquoise) circle at the origin (0,0). A range of anomalies called “normal” is shown by a dashed rectangle in aqua (aqua). For values in degrees, the assigned normal range is +/-0.7°; for cloudiness, +/-7%; for monthly rainfall, +/-14 mm.

 * Normal values for rainfall are based on averages for the 125 years beginning 1883.
