March rain leaves drought extreme

Above-average rainfall in March reduced the shortage of rainfall in the last 3 months. It did not relieve extreme shortages at durations between 12 months and 7 years.

Rainfall status Feb-Mar 2019

Graph of Rainfall Shortages

This graph shows all the present rainfall shortages at Manilla, short term and long term, as percentile values. The latest values, as at the end of March, are shown by a thick black line with large circles. Those from one month earlier are shown by a thinner line with smaller circles. [The method is described in “Further Explanation” below.]

Good rain in March

A rain front at the end of March 2019 that brought about 40 mm took the March total up to the average. This raised the 2-month and 3-month totals nearer to normal. It did nothing to increase longer-duration totals.

Extreme rainfall shortages

By February, six of the eleven rainfall shortages measured over durations from 12 months to 7 years were extreme. (That is, those totals were in the driest one percent in history.)
Despite the high rainfall of March, March figures also record six extreme shortages. The 18-month total is no longer extreme, but the 30-month total has now become extreme.
Two of the rainfall totals (plotted on the 0.1% line) are near-record low values. The 24-month total of 769 mm is the second lowest after July 1966 (766 mm). The 30-month total of 1078 mm is equal lowest with October 1966.
Data for February, plotted on the thinner line, show the record low values for 12 months (271 mm) and for 84 months (3672 mm).

The previous 24 months

The development of this drought through the previous 24 months is shown in the later post “Rainfall Shortage Sequence 03/2019”. A contour graph shows severity of shortage by contoured layer tints, with serial months on the x-axis and duration of shortage on the y-axis.


Further Explanation

[Update 5 April 2019.]

The following notes explain aspects of this work under these listed headings:

Data analysis

Cumulative rainfall totals
Percentile values
Severity of rainfall shortages

Limitations of this analysis

Monthly rainfalls form a single population
Observations are not retrospective
The rain gauge failed

Data analysis

This graph is based on analysis of monthly rainfall totals from 1883. Using the spreadsheet application Excel, I calculate cumulative totals and their percentile values. Using these values, I identify rainfall shortages as serious, severe, or extreme .

Cumulative rainfall totals

In the first of two tables, I cumulate the rainfall totals. First, I add each month’s rainfall total to that of the previous month for a 2-month total. Using the previous two months, I get a 3-month total, and so on. In this way, I get n-month rainfall totals from n = 1 up to n = 360 (30 years). However, I calculate for only the following 25 values of n:

n = 1, 2, 3, 4, 5, 6, 9, 12, 15, 18, 24, 30, 36, 42, 48, 60, 72, 84, 96, 108, 120, 144, 180, 240, 360

Continue reading

February: Two Record Droughts

Two rainfall totals to February 2019 were the lowest ever recorded at Manilla: 271 mm in 12 months, and 3672 mm in 7 years.

Rainfall status Jan-Feb 2019

Graph of Rainfall Shortages

This graph shows all the present rainfall shortages at Manilla, short term and long term, as percentile values. The latest values, as at the end of February, are shown by a thick black line with large circles. Those from one month earlier are shown by a thinner line with smaller circles.

The pattern

The very low rainfall of February 2019 (10.6 mm) has driven the rainfall totals lower than they were in January for nearly all the durations that are shown.
The rainfall totals up to 6 months are still not “serious” shortages (below the 10th percentile), but the only other total that is not now a serious shortage, or worse, is that for 30 years (360 months).
In recent months, extreme shortages (below the 1st percentile) have persisted at durations of 12 to 24 months, and at durations of 6 to 7 years.

Record-breaking drought

Two rainfall totals to the end of February are new drought records for Manilla.

The 12-month total of 271 mm beats 288 mm set in October 1965.
The 84-month (7-year) total of 3672 mm beats of 3699 mm set in March 1903.

Earlier, another record had been broken in September. The 15-month total of 400 mm at that date beat 404 mm set in May 1912.


Further Explanation

Drought 2018 contour chartMuch more detail was given in the post: “Contours of Manilla’s 2018 Drought” (with data up to October only). Notes include: “Long-term shortages”, “Classes of rainfall shortage”, and “Manilla rainfall records”.

Driest 6 years since 1903

The six-year rainfall total of 3142 mm to January 2019 was the lowest in a century. The only lower totals ended in the months January, February, and March 1903.

Rainfall shortages at Dec 2018 and Jan 2019

Graph of Rainfall Shortages

This graph shows all the present rainfall shortages at Manilla, short term and long term, as percentile values. The latest values, as at the end of January, are shown by a black line with large circles. Those from one month earlier, at the end of December, are shown by a thinner line with smaller circles.

Changes this month

The pattern

At this date, rainfall totals for short periods, one month to six months, are below normal but they are not serious shortages (below the 10th percentile). Now, nearly all rainfall totals for nine months up to twenty years are serious shortages or worse. Extreme shortages (below the first percentile) occur at durations from 12 months to 24 months, and at 6 and 7 years. Severe shortages (below the 5th percentile) have now developed at 30 months, 36 months and 48 months.

Short-term shortages

At durations less than nine months, rainfall shortages hover around the 20th percentile. While not classed as “serious”, such values cause the drought to extend to ever longer durations.

Extreme shortages

There are now extreme shortages (1st percentile) at durations of 12 months (331 mm), 15 months (444 mm) 18 months (548 mm), and 24 months (821 mm). The extreme 7-year shortage has now worsened, to become the 7th driest on record. However, the 6-year shortage is even worse, the 4th driest.

Long-term shortages

In the longer term, serious shortages at 8 years, 10 years and 20 years persist from the December graph, and a new one appears at 15 years.
Such long-term rainfall shortages were common early in the 20th century. They have hardly occurred since the Keepit Dam was built in 1960.


Further Explanation

Drought 2018 contour chartMuch more detail was given in the post: “Contours of Manilla’s 2018 Drought” (with data up to October only). Notes include: “Long-term shortages”, “Classes of rainfall shortage”, and “Manilla rainfall records”.

Driest 18 months in 50 years

In December 2018, droughts of long duration got worse.

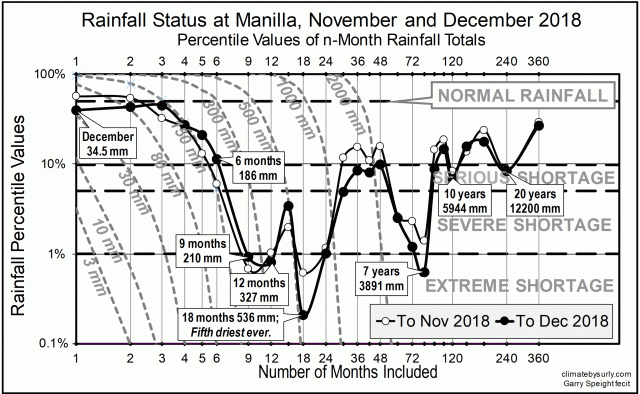

Rainfall shortage November-December 2018

Graph of Rainfall Shortages

This graph shows all the present rainfall shortages at Manilla, short term and long term, as percentile values. The latest values, as at the end of December, are shown by a black line with black circles. Those from one month earlier, at the end of November, are shown by a thinner line with smaller white circles.

Changes this month

Short-term shortages

Although December rainfall (34.5 mm) was below normal, it was enough to keep the totals for 2, 3, 4, and 5 months above the level of “serious shortage”. Because the 6-month total rose to 186 mm, it too did not count as a serious shortage.

Extreme shortages

There were extreme shortages (1st percentile) at durations of 9 months (210 mm), 12 months (327 mm), 18 months (536 mm) and 7 years (3891 mm). The 18-month shortage was the most extreme, being the fifth lowest in history, after four lower values in 1966 (the lowest: 514 mm). The extreme 7-year shortage that has now appeared is lower than any since 1942.

Worsening long-term shortages

This drought brings worsening long-term rainfall shortages. Among the 14 selected durations longer than 2 years that are shown here, 10 of them are now serious shortages (10th percentile) or worse.
As well as the extreme 7-year shortage, two serious shortages that appeared in November are now worse: the 10 year total fell from 5964 mm to 5944 mm, and the 20-year total fell from 12209 mm to 12200 mm. The 10-year shortfall amounts to nearly one year of rain.
Such long-term rainfall shortages were common early in the 20th century. They have hardly occurred since the Keepit Dam was built in 1960.


Further Explanation

Drought 2018 contour chartMuch more detail was given in the post: “Contours of Manilla’s 2018 Drought” (with data up to October only). Notes include: “Long-term shortages”, “Classes of rainfall shortage”, and “Manilla rainfall records”.

November Drought Gets Longer

In November 2018, the drought faded in the short term, but became worse in the long term.

Rainfall Oct Nov 2018 Manilla

Graph of Rainfall Shortages

This graph shows all the present rainfall shortages at Manilla, short term and long term, in terms of percentile values. The latest values, as at the end of October, are shown by a black line with black circles. Those from one month earlier, at the end of October, are shown by a thinner line with smaller white circles.

Changes this month

November rainfall was almost normal at 50.2 mm, further raising the totals for 2, 3, 4, and 5 months, so they did not qualify as serious shortages. The 6-month total of 156 mm qualified as a serious shortage.
The remaining extreme shortages were at 9 months (201 mm) and 18 months (564 mm).

Worsening long-term shortages

Rainfall totals for periods from 72 months to 360 months (6 years to 30 years) are now all below normal. In decades before September 2017 those totals had been normal. (See the September 2017 plot on the graph in this earlier post.)

Three of the current data points are far below normal. The 7-year total (3935 mm) is a severe (almost extreme) shortage, not seen since 1946. The 120-month (10-year) total (5986 mm) is a serious shortage, not seen since 1967. Similarly, the 240-month (20-year) total is a serious shortage, not seen since 1949.
Such long-term rainfall shortages were common early in the 20th century. They have hardly occurred since the Keepit Dam was built in 1960.


Further Explanation

Drought 2018 contour chartMuch more detail was given in the post: “Contours of Manilla’s 2018 Drought” (with data up to October only). Notes include: “Long-term shortages”, “Classes of rainfall shortage”, and “Manilla rainfall records”.
