3-year trends to September 2010

Parametric plots of smoothed climate variables at Manilla
“Flooding Rains”

Trends to September 2010

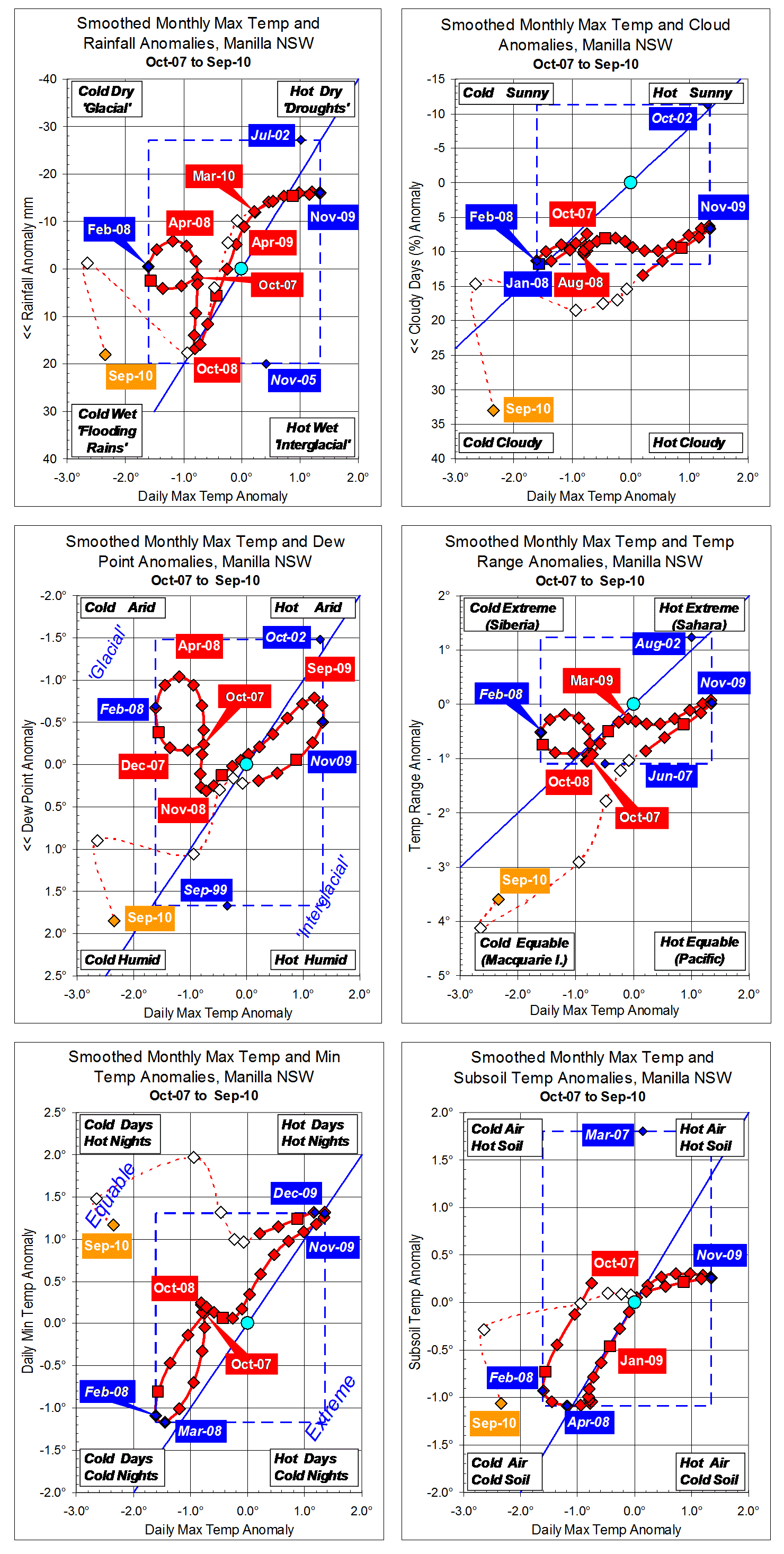

The September 2010 data, marked with orange diamonds, are in the “Flooding Rains” area in the bottom left corner of five of the six graphs. Anomaly values of rainfall, cloudy days, Dew Point, temperature range and subsoil temperature are extreme. The Minimum temperature anomaly has remained very high for a year.

Fully smoothed data – Gaussian smoothing with half-width 6 months – are plotted in red, partly smoothed data uncoloured, and raw data for the last data point in orange. January data points are marked by squares.
Blue diamonds and the dashed blue rectangle show the extreme values in the fully smoothed data record since September 1999.
